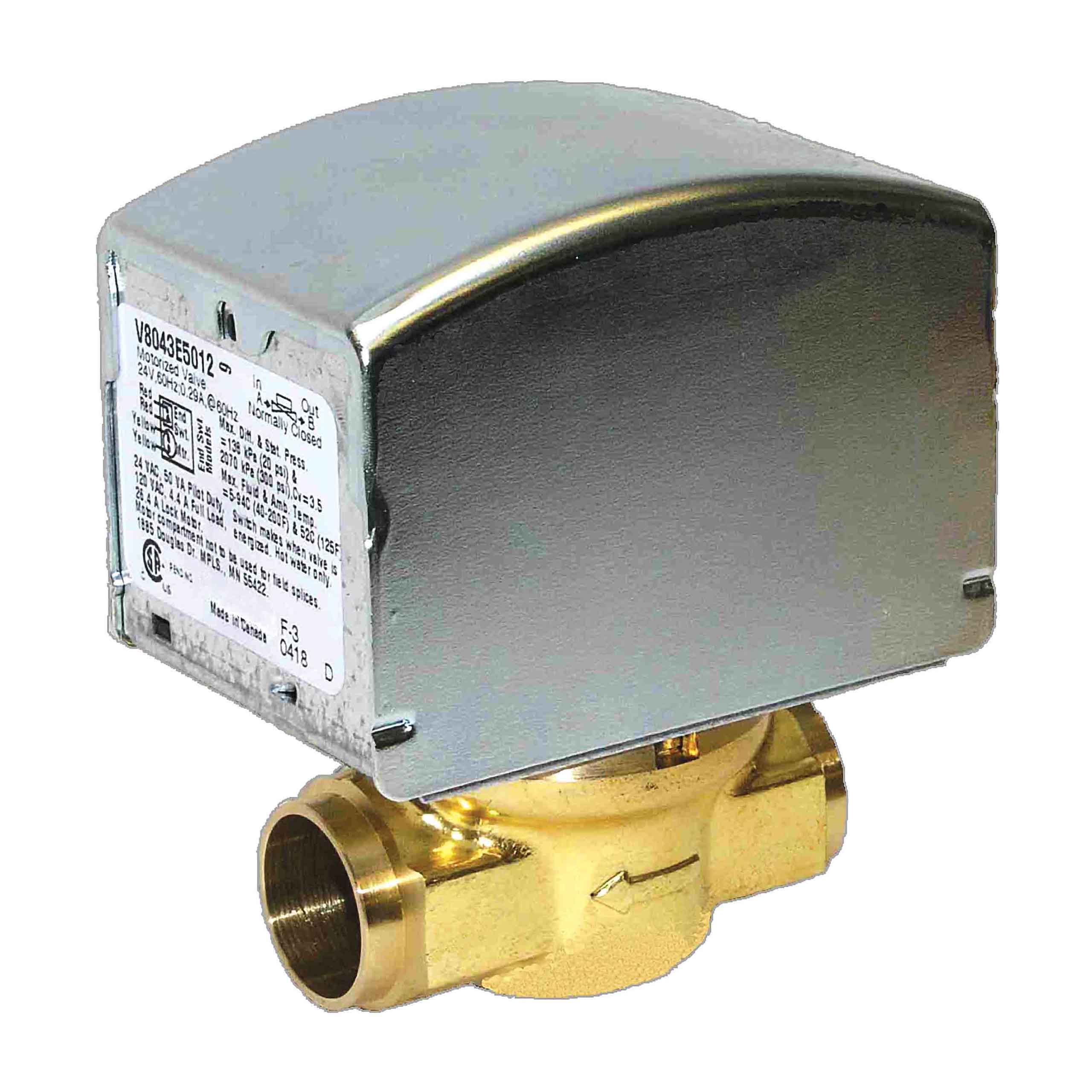

Part #V8043E5012
Product Description
3/4" x 3/4", Soldered x Soldered, 24 VAC 60 Hz 0.32 A 7.2 VA, 3.5 Cv, 20 PSI Differential Close-Off, 300 PSI Static, Brass, NC, 2-Way, Straight-Through, Motorized Zone Valve
Part #V8043E5012
Product Description
3/4" x 3/4", Soldered x Soldered, 24 VAC 60 Hz 0.32 A 7.2 VA, 3.5 Cv, 20 PSI Differential Close-Off, 300 PSI Static, Brass, NC, 2-Way, Straight-Through, Motorized Zone Valve
- Brand
Honeywell Building Management Systems
Actuation Type2-Position, Spring Return to Close
Body MaterialBrass
End ConnectionSoldered x Soldered
Input Supply Rating24 Volt AC 60 Hertz 0.32 Amp 7.2 Volt Amp
Media HandledHot Water
Nominal Size3/4 Inch x 3/4 Inch
Pressure Rating20 PSI (Differential Close-Off), 300 PSI (Static)
Temperature Rating50 to 200 Deg F (Fluid)
Type2-Way, Straight-Through
Valve PositionNC
Valve Timing15 Second (Open)
