Part #RSG1548S1R
MFG #RSG1548S1R
Product Description
4 Ton Cooling, 208/230 VAC 60 Hz 1-Phase, 33 A MCA, 1/4 HP, 825 RPM, 15 SEER, Baked Polyester Painted Galvanized Steel, R-410A/Green, 1-Stage, Split System, High Efficiency, Scroll Compressor, Air Conditioner

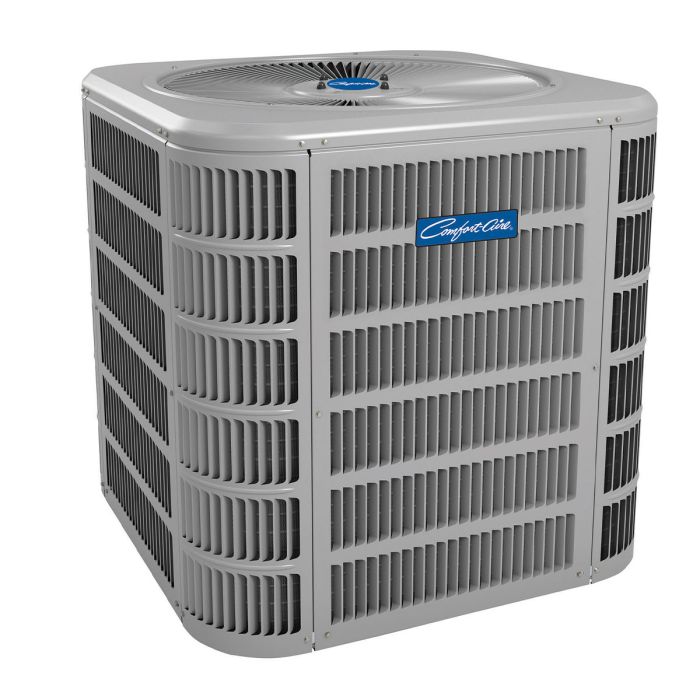

![C/A 4 TON 48K R-410A 15SEER](https://images.tradeservice.com/PRODUCTIMAGES/DIR100537/MarsMotors&Armatures-ComfortAire_RSG1548S1R_Image1-PROD.jpg)
Part #RSG1548S1R
MFG #RSG1548S1R
Product Description
4 Ton Cooling, 208/230 VAC 60 Hz 1-Phase, 33 A MCA, 1/4 HP, 825 RPM, 15 SEER, Baked Polyester Painted Galvanized Steel, R-410A/Green, 1-Stage, Split System, High Efficiency, Scroll Compressor, Air Conditioner
- High Quality Condenser Coil with Aluminum Tubing and Enhanced Louvered Fin for Maximum Heat Transfer Capacity; Top Discharge Directs Hot Air Away from Living Area and Shrubbery; All Units Factory Run Tested; Easy Access to Electrical Panels, Pre-Wired for Easy Hook-Up; Liquid Line Drier Shipped Loose; Charged for 15 Foot of Interconnecting Tubing; High Pressure Switch Factory Installed; Energy StarĀ® Rated
- Air Conditioner; Type 1-Stage, Split System, High Efficiency, Scroll Compressor; Voltage Rating 208/230 Volt AC; Current Rating 33 Amp (MCA), 50 Amp (MOCP), 25 Amp RLA/120 Amp LRA (Compressor), 1.7 Amp RLA (Fan Motor); Frequency Rating 60 Hertz; Number of Phases 1; Power Rating 1/4 HP; Cooling Capacity 4 Ton; Temperature Control Type Thermostat; Enclosure Material Galvanized Steel; Enclosure Finish Baked Polyester Painted; Size 28-1/4 Inch Width x 28-1/4 Inch Depth x 43-1/4 Inch Height; Approval ETL (Canada and US); Refrigerant Type R-410A, Green Gas; Coil Type Aluminum Tube and Enhanced Lanced Fin; Energy Efficiency Ratio 15 SEER/13.8 EER2; Motor Speed Rating 825 RPM; Sound Rating 78 Decibel; Refrigerant Control Type Thermostatic Expansion Valve; Refrigerant Connection Size 7/8 Inch (Suction), 3/8 Inch (Liquid); Application Residential; Applicable Standard AHRI
- Brand
Comfort-Aire
ApprovalETL (Canada and US)
Cooling Capacity4 Ton
Enclosure FinishBaked Polyester Painted
Enclosure MaterialGalvanized Steel
Frequency Rating60 Hertz
Number of Phases1
Power Rating1/4 HP
Size28-1/4 Inch Width x 28-1/4 Inch Depth x 43-1/4 Inch Height
Temperature Control TypeThermostat
Type1-Stage, Split System, High Efficiency, Scroll Compressor
Voltage Rating208/230 Volt AC
