Part #FSK5
MFG #030_5INX25FT
Product Description

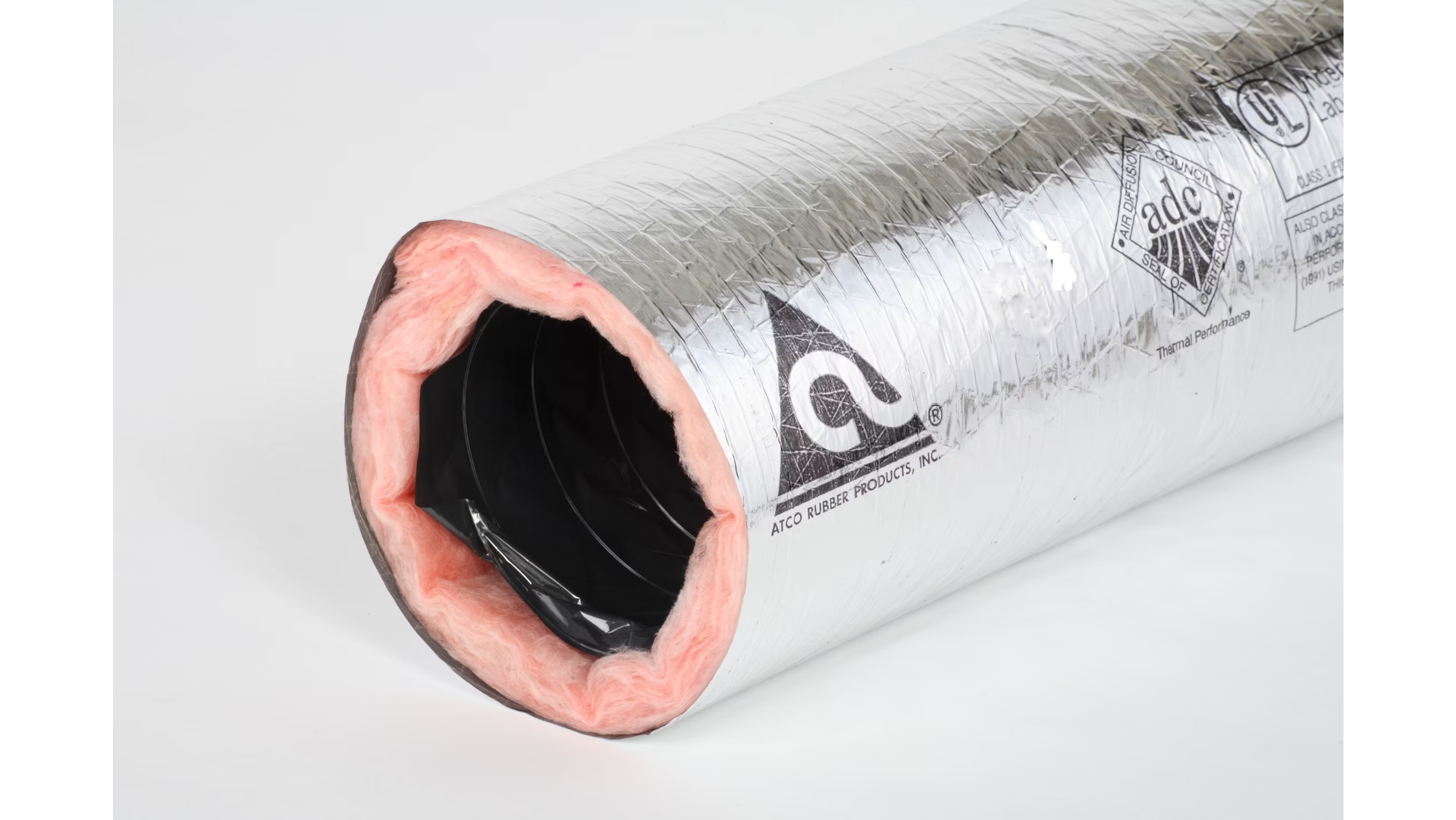

5" x 25', 5000 FPM, Silver, Metalized Polyester Jacket, 2-Ply Polyester Film Encapsulated Steel Wire Helix Core, Tri-Directional Fiberglass Scrim Reinforced/R-4.2 Insulation, Class 1, Insulated, Plain End, Flexible Air Duct
Part #FSK5
MFG #030_5INX25FT
Product Description
5" x 25', 5000 FPM, Silver, Metalized Polyester Jacket, 2-Ply Polyester Film Encapsulated Steel Wire Helix Core, Tri-Directional Fiberglass Scrim Reinforced/R-4.2 Insulation, Class 1, Insulated, Plain End, Flexible Air Duct
- Air Tight Inner Core-Energy Efficient/No Fiberglass Erosion into Air Stream; Encapsulated Wire Helix-No Unraveling When Cut to Length/Quick Installation; Smooth Inner Core-Low Friction Loss/Low Operating Cost; Tough Reinforced Metalized Polyester Jacket-Tear and Puncture Resistant/Low Maintenance; Lightweight Compact Carton/Bag-Reduces Warehouse and Jobsite Handling Cost; Formaldehyde Free-Made with Owens Corning EcoTouch Insulation; GreenGuard Gold Certified
- Flexible Air Duct; Type Class 1, Flexible, Insulated, Plain End; Insulation Type Tri-Directional Fiberglass Scrim Reinforced, R-4.2; Burning Character Maximum Flame Spread 25, Maximum Smoke Developed 50; Air Velocity 5000 FPM; Rated Positive Pressure 10 Inch WG Positive per UL 181; Rated Negative Pressure 3/4 Inch WG; Jacket Material Metalized Polyester; Core Material 2-Ply Polyester Film Encapsulated Steel Wire Helix; Length 25 Foot; Width 5 Inch Diameter; Temperature Rating -20 to 180 Deg F (Continuous), -20 to 250 Deg F (Intermittent); Applicable Standard UL 181, CUL, ASTM C518, ADC, NFPA 90A/B, IMC, IRC, UMC, ICC ES, HUD, GREENGUARD; Jacket Color Silver; Vapor Transmission 0.05 Perm; Application Residential and Commercial Low to Medium Pressure Heating and Air Conditioning System
- Brand
ATCO Rubber Products
Air Velocity5000 FPM
Burning CharacterMaximum Flame Spread 25, Maximum Smoke Developed 50
Core Material2-Ply Polyester Film Encapsulated Steel Wire Helix
Insulation TypeTri-Directional Fiberglass Scrim Reinforced, R-4.2
Jacket MaterialMetalized Polyester
Length25 Foot
Rated Negative Pressure3/4 Inch WG
Rated Positive Pressure10 Inch WG Positive per UL 181
Temperature Rating-20 to 180 Deg F (Continuous), -20 to 250 Deg F (Intermittent)
TypeClass 1, Flexible, Insulated, Plain End
Width5 Inch Diameter
