Part #A951X100CD5SAA
MFG #A951X100CD5SAB
Product Description

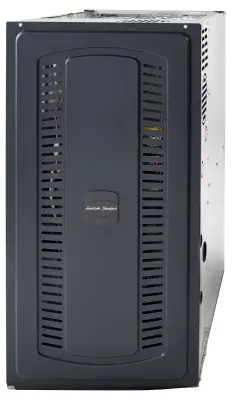

21" x 28-3/4" x 34", 100000 BTU/Hr Input, 96800 BTU/Hr Output, 5 Ton Cooling, 120 VAC 60 Hz 1-Phase, 10.6 A FLA, 1 HP, 95% AFUE, Constant Torque ECM Motor, 1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Downflow, Standard System, Natural Gas Furnace
Part #A951X100CD5SAA
MFG #A951X100CD5SAB
Product Description
21" x 28-3/4" x 34", 100000 BTU/Hr Input, 96800 BTU/Hr Output, 5 Ton Cooling, 120 VAC 60 Hz 1-Phase, 10.6 A FLA, 1 HP, 95% AFUE, Constant Torque ECM Motor, 1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Downflow, Standard System, Natural Gas Furnace
- Gas Furnace; Type 1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Downflow, Standard System; Btu per Hour 100000 (Input), 96800 (Output); Capacity 1002 to 2342 CFM at 0.1 Inch WG; Size 21 Inch Width x 28-3/4 Inch Depth x 34 Inch Height; Vent Size 2 Inch Diameter; Inclusion/Features Direct Drive Blower, High Velocity Filter, Centrifugal Combustion Fan, Multi-Port Inshot Burner, 120 Volt Silicon Nitride Igniter Pilot Safety Device, 20 Gauge 409 Stainless Steel Heat Exchanger, Steel Cabinet; Voltage Rating 120 Volt AC 60 Hertz 1-Phase; Current Rating 10.6 Amp FLA (Blower Drive), 0.66 Amp FLA (Combustion Fan), 15 Amp (MOP); Motor Power Rating 1 HP (Blower Drive); Nominal Cooling Capacity 5 Ton; Motor Type Constant Torque ECM; Fuel Type Natural Gas; Blower Dimension 11 Inch Diameter x 10 Inch Width; Number of Speed 9; Motor Speed Rating 1075 RPM (Blower Drive), 3300 RPM (Combustion Fan); Number of Burner 5; Pipe Connection Size 1/2 Inch; AFUE Rating 95 Percent (Condensing); Temperature Rating 45 to 80 Deg F; Applicable Standard ETL (Canada and US), ANSI Z21.47/CSA 2.3
- Energy Star® Rated
- Brand
Ameristar Heating and Cooling
BTU Input100k
Capacity1002 to 2342 CFM at 0.1 Inch WG
Efficiency90% +
FamilyA951X-ECM
OrientationDownflow
Size21 Inch Width x 28-3/4 Inch Depth x 34 Inch Height
Type1-Stage, Condensing, Direct/Non-Direct Vent, Serial Controlled, Downflow, Standard System
Vent Size2 Inch Diameter
