Part #MCG3036PB4P
MFG #MCG3036PB4P
Product Description

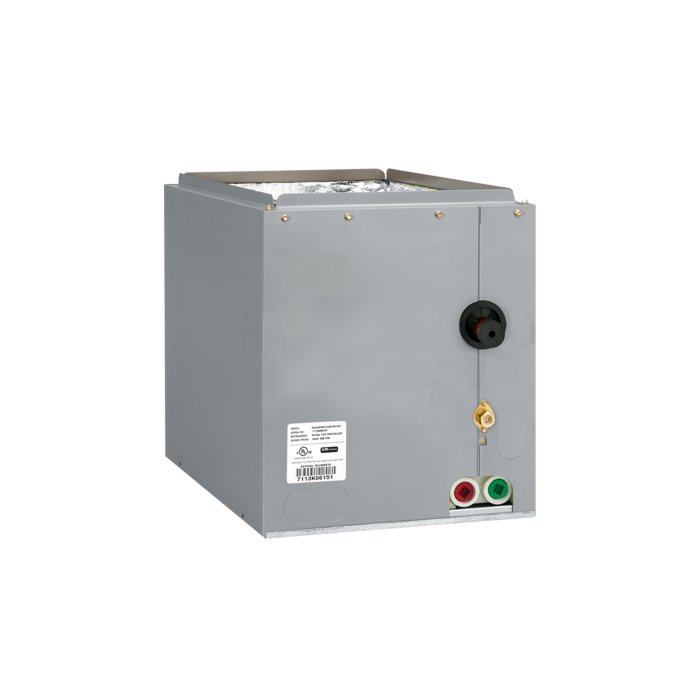

17.5" x 21" x 16.5", 3 Ton, Piston/Flowrator, R-22/R-410A, 3/8" Liquid Line, 3/4" Suction Line, Gray Steel Cabinet, Rifled Copper Tubing, Enhanced Aluminum Fin, Multi-Position, Air Conditioner Cased Coil
Part #MCG3036PB4P
MFG #MCG3036PB4P
Product Description
17.5" x 21" x 16.5", 3 Ton, Piston/Flowrator, R-22/R-410A, 3/8" Liquid Line, 3/4" Suction Line, Gray Steel Cabinet, Rifled Copper Tubing, Enhanced Aluminum Fin, Multi-Position, Air Conditioner Cased Coil
- Rifled Copper Tubing, Enhanced Aluminum Fins; Immersion Tested at 500 PSI, then Nitrogen Pressurized and Sealed; Right Hand Refrigerant and Plumbing Connections; Externally Mounted Flowrater Body with Schrader Valve for Hiss Testing; Heavy Duty Plastic Drain Pans on Most Models; Upflow, Horizontal Right or Horizontal Left without Field Model Modification; Painted Cabinets Feature Furnace Connectors; Fully Insulated Cabinets with Faced Insulation; Split Access Doors in Front for Easy Service; AHRI Certified
- Air Conditioner Cased Coil; Item Cased Coil, Multi-Position; Size 17.5 Inch Width x 21 Inch Depth x 16.5 Inch Height; Material Steel (Cabinet), Rifled Copper (Tubing), Enhanced Aluminum (Fin); Color/Finish Gray (Cabinet); Used On Item Air Conditioner, Heat Pump, Furnace; Applicable Standard ETL (Canada and US), UL (Canada and US), AHRI 210/240; Refrigerant Type R-22/R-410A; Furnace Coil Width 17-1/2 Inch; Nominal Capacity 3 Ton; Connection Size 3/8 Inch (Liquid Line), 3/4 Inch (Suction Line); Number of Tube Rows 3; Metering Device Piston/Flowrator
- Brand
Comfort-Aire
Color/FinishGray (Cabinet)
ItemCased Coil, Multi-Position
Size17.5 Inch Width x 21 Inch Depth x 16.5 Inch Height
Used On ItemAir Conditioner, Heat Pump, Furnace
